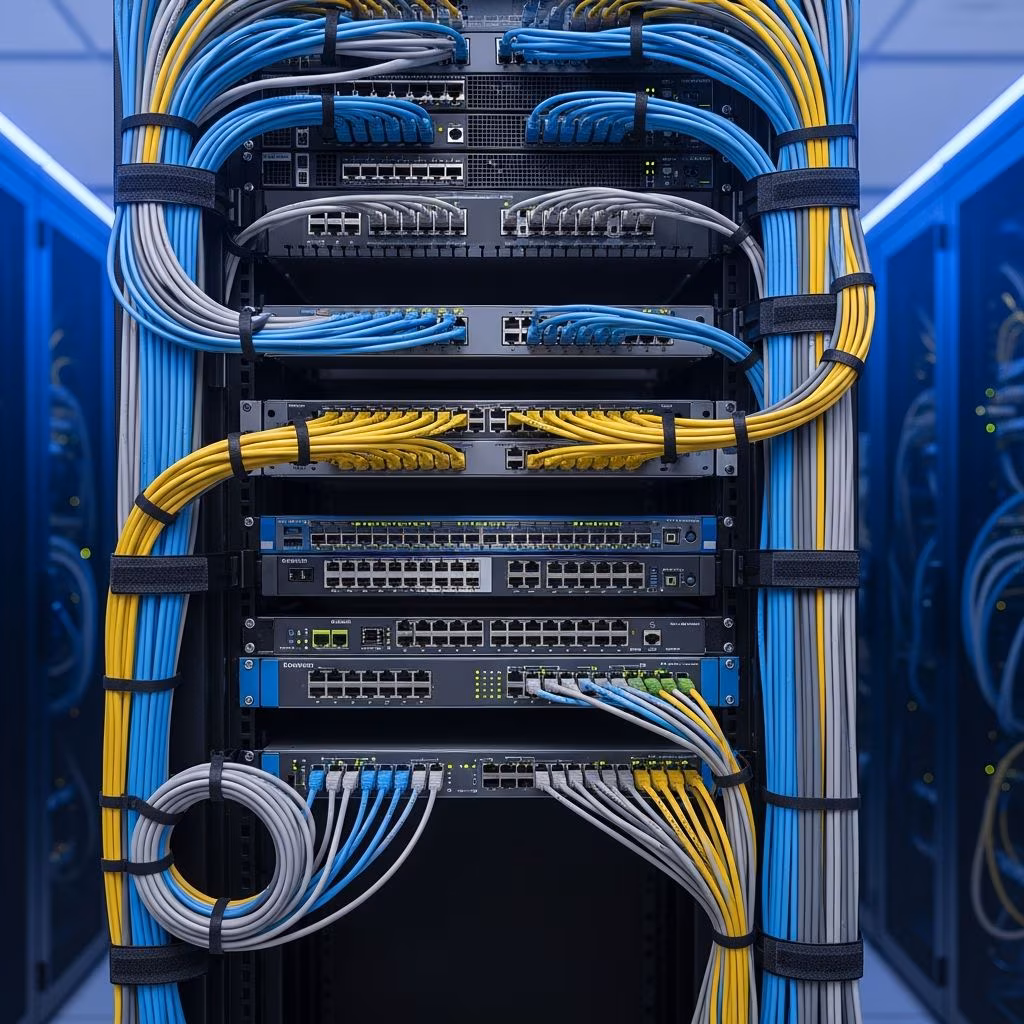

Effective cable management is the backbone of any reliable network infrastructure. Poorly organized cables lead to downtime, troubleshooting nightmares, and safety hazards. This comprehensive guide explores practical strategies to streamline your cabling projects, drawing from industry standards and real-world applications. Whether you’re setting up a data center, wiring an office, or upgrading enterprise networks, these insights will help you achieve clutter-free, high-performing systems.
Understanding Cable Specifications Before Installation
Selecting the right cable begins with a deep dive into technical specifications. Factors like data transmission speeds, run lengths, and environmental conditions dictate choices between twisted-pair copper, fiber optics, or hybrid solutions. For instance, Category 6A cables support 10 Gbps over 100 meters, while fiber excels in longer distances with minimal signal loss.
Key specs to evaluate include maximum pull lengths to prevent attenuation, minimum bend radii to avoid damaging internal conductors, and compatibility with Power over Ethernet (PoE) for devices needing both data and power. Ignoring these can result in performance degradation or outright failures. Always consult manufacturer datasheets and standards like TIA/EIA-568 for structured cabling systems.
Strategic Planning for Cable Pathways
Before pulling any cables, map out your pathways meticulously. Start with a site survey to identify obstacles such as HVAC ducts, structural beams, and electrical conduits. Digital tools like CAD software or simple floor plans can visualize routes, minimizing bends and optimizing lengths.
Plan for future scalability by incorporating spare conduits or oversized trays. This foresight reduces retrofit costs when adding IoT devices or expanding bandwidth. In data centers, prioritize vertical risers and horizontal distribution paths aligned with rack layouts to shorten patch cord runs.
- Assess traffic flow to keep pathways away from high-foot areas.
- Separate high-voltage power lines from low-voltage data cables by at least 12 inches per NEC guidelines.
- Budget for 20-30% extra capacity in trays and ladders.
Choosing Appropriate Support Systems
Reliable support prevents sagging, stress, and premature wear. Overhead cable trays, J-hooks, and ladder racks distribute weight evenly, accommodating bundles up to hundreds of pounds. For PoE-heavy setups, upgrade to heavier-duty supports as modern cables weigh up to 50% more than legacy ones.
Adhere to support spacing rules: every 4-5 feet for horizontal runs in plenum spaces, tighter for vertical drops. Use UL-listed hardware resistant to corrosion in humid environments. In raised-floor scenarios, underfloor baskets manage airflow while organizing cables.
| Support Type | Best Use Case | Max Load (lbs/ft) |
|---|---|---|
| J-Hooks | Low-voltage bundles | 50 |
| Cable Trays | High-density data centers | 100+ |
| Ladder Racks | Heavy PoE/power cables | 200 |
Implementing Color-Coding and Labeling Protocols
Labels are the unsung heroes of troubleshooting. Assign unique alphanumeric codes to each run, embedding details like origin closet, destination port, and bandwidth rating. Use heat-shrink sleeves or wrap-around labels for durability in dusty or moist areas.
Color-coding complements labels: blue for data, red for voice, yellow for fiber. This visual system speeds identification during moves, adds, or changes (MACs). At patch panels, maintain consistent port numbering schemes matching switch configurations.
Pro tip: Automate labeling with handheld printers synced to your documentation software, ensuring as-built drawings reflect reality.
Maintaining Proper Bend Radius and Tension Control
Cables have finite flexibility; exceeding bend radius (typically 4x cable diameter for copper) crimps conductors, spiking crosstalk or attenuation. During pulls, use lubricants and swivel connectors to limit tension below 25 lbs for Cat6.
In tight spaces, employ quarter-turn bends and radius drops at walls. For fiber, stricter 10x rules apply to prevent microbends. Post-installation audits with cable certifiers verify compliance, flagging issues before they cause outages.
Optimizing Cable Lengths for Efficiency
Oversized cables waste money and introduce signal noise. Aim for runs no longer than necessary, typically under 90 meters for copper to leave headroom for patch cords. Pre-measure paths and cut custom lengths on-site or order pre-terminated assemblies for precision.
This ‘rightsizing’ balances economy with flexibility, allowing easy rerouting around new fixtures like cable arms or cooling units. Track inventory to avoid excess stockpiles cluttering storage.
Enhancing Safety and Accessibility
Cables dangling from ceilings or pooled on floors invite trips and fires. Secure runs off walkways using D-rings or guards, elevating at least 7 feet overhead. In racks, zero-U managers behind equipment provide strain relief and airflow.
Comply with OSHA 1910.303 for temporary wiring and NEC Article 800 for communications circuits. Regular inspections catch frays or overloads early.
Documentation and Maintenance Best Practices
A living documentation set—spanning spreadsheets, apps like NetBox, or CMMS—is vital. Record every termination, test result, and revision. Quarterly audits ensure labels match reality, with photos timestamped for compliance.
For remote teams, QR codes on panels link to digital twins, accelerating diagnostics.
Advanced Techniques for High-Density Environments
In hyperscale data centers, pre-fabricated trunk cables and modular cassettes slash deployment time by 70%. AI-driven management tools monitor slack and predict failures via tension sensors. Hybrid fiber-copper plants support 400G+ speeds with minimal footprint.
Explore swing-out PDUs and overhead PDUs to disentangle power from data paths.
Frequently Asked Questions
What is the standard bend radius for Ethernet cables?
Generally 4 times the cable diameter during installation, relaxing to 8x post-install for Category 5e/6.
How often should cable supports be installed?
Every 48-60 inches horizontally, per TIA-569 standards, adjusted for vertical or seismic zones.
Are Velcro ties preferable to zip ties?
Yes for reusability in serviceable areas; zip ties for permanent, high-security installs.
Can PoE affect cable management choices?
Absolutely—thicker gauges demand stronger supports and wider trays.
Conclusion
Mastering cable management transforms chaotic wiring into a resilient asset. By prioritizing planning, standards adherence, and ongoing care, networks gain reliability and agility. Implement these strategies incrementally for immediate gains in efficiency and safety. (Word count: 1678)
References
- National Electrical Code (NEC) 2023 Handbook — National Fire Protection Association. 2023-01-01. https://www.nfpa.org/codes-and-standards/all-codes-and-standards/detail?code=70
- TIA-569-E Telecommunications Pathways and Spaces — Telecommunications Industry Association. 2021-08-15. https://tiaonline.org/products-and-services/tia-569-e/
- OSHA Standard 1910.303 Electrical – General — Occupational Safety and Health Administration. 2024-05-10. https://www.osha.gov/laws-regs/regulations/standardnumber/1910.303
- Commercial Building Telecommunications Cabling Standard TIA/EIA-568-D — ANSI/TIA. 2017-12-05. https://www.tiaonline.org/standards/
- UL 62275 Standard for Cable Management Systems — Underwriters Laboratories. 2023-06-20. https://www.ul.com/standards/ul-62275
