Budget Antifreeze Tester Guide: Easy 2-Minute Testing Tips

Keeping your vehicle’s coolant at the right strength is vital for preventing engine damage from freezing temperatures or overheating. Affordable disc-style testers, such as those from Silverline, offer a simple and reliable way to measure antifreeze concentration without expensive equipment. These tools provide quick readings on protection levels, helping drivers maintain optimal mixtures.

Why Test Your Coolant Regularly?

Coolant, or antifreeze, serves multiple purposes in a car engine. It lowers the freezing point to prevent blockages in cold weather, raises the boiling point to avoid summer overheating, and inhibits corrosion. Over time, dilution from water top-ups or evaporation can weaken its effectiveness. Regular testing ensures the mixture provides protection down to at least -35°C for most climates.

• Prevents radiator and block cracks from ice expansion.
• Detects contamination early to avoid pump or hose failures.
• Extends the life of water pumps and thermostats.

Experts recommend checking twice yearly—before winter and summer. A proper 50/50 mix of antifreeze and water typically offers freeze protection to -37°C and boil protection to 108°C.

How Disc-Style Testers Work

Disc testers are among the most accessible options, costing under £5. They use a series of weighted discs inside a transparent tube. When coolant is drawn in, the number of floating discs indicates strength: more floating discs mean stronger protection.

This graduated system allows precise assessment. Unlike floating ball testers, discs provide finer granularity for ethylene glycol (green/pink) and propylene glycol (OAT) coolants.

Spotlight on the Silverline Antifreeze Tester

The Silverline model stands out in budget categories for its precision. Priced around £4, it outperforms pricier rivals in low-concentration tests. Independent reviews note its accuracy at 25-40% mixes, where others falter. It’s compact, with a sturdy plastic body and easy-squeeze bulb for sample intake.

• Compatible with most coolant types.
• Clear numbering for quick reads.
• Resistant to common chemical degradation.

Users appreciate its no-fuss design—no batteries or calibration needed. For DIYers, it’s a garage essential.

Step-by-Step Testing Guide

Accurate results depend on proper technique. Always park on a level surface and let the engine cool fully to avoid burns or pressure releases.

1. Prepare the tool: Rinse the tester thoroughly with clean water to remove residues.
2. Access coolant: Use the expansion tank if available; otherwise, carefully remove the radiator cap once cold.

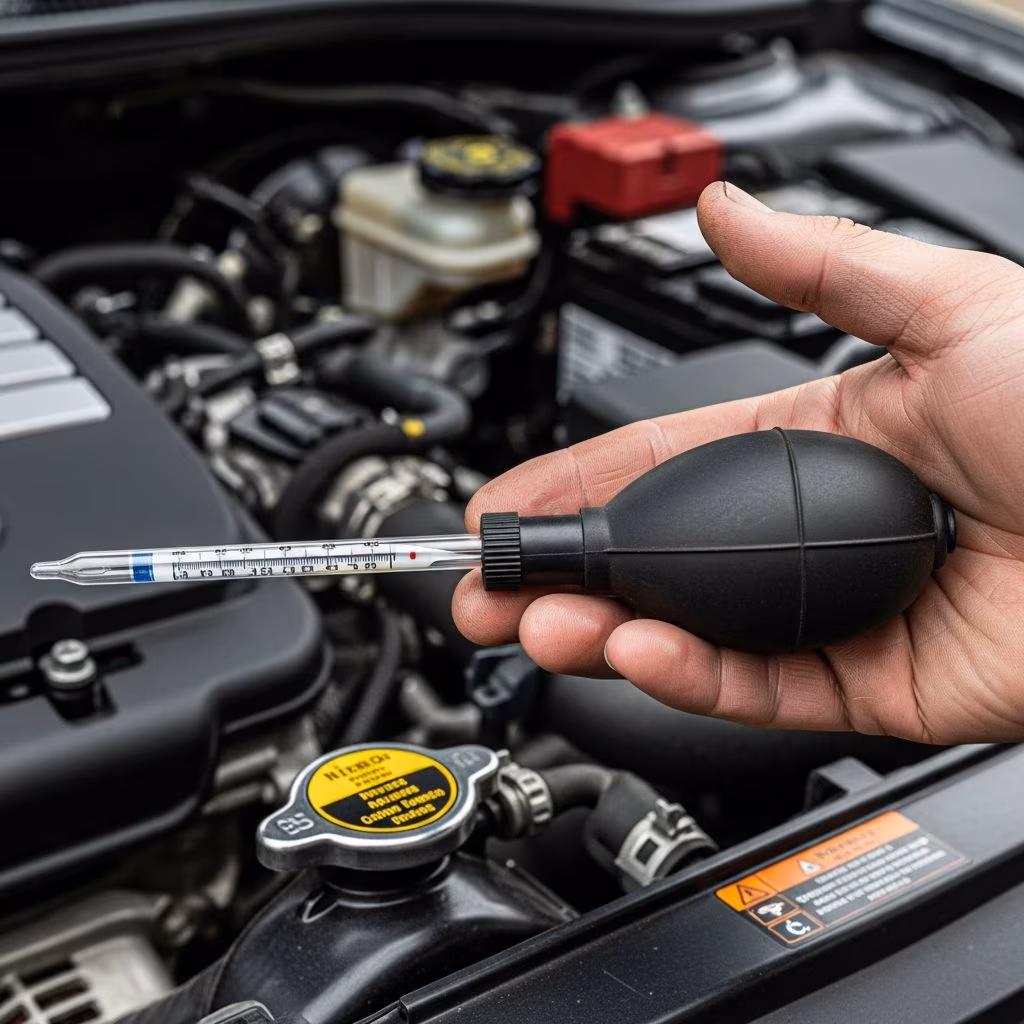

3. Draw sample: Squeeze the bulb fully, insert the tube into the coolant, and release slowly. Fill to the marked line.
4. Remove bubbles: Tap gently on your palm to dislodge air pockets, which can skew readings.
5. Read result: Hold upright to eye level. Count floating discs against the scale.
6. Clean up: Flush with water and store dry.

A test takes under 2 minutes. Repeat 2-3 times for consistency.

Comparing Popular Antifreeze Testers

Budget options vary in design and reliability. Here’s a breakdown:

Silverline edges out due to superior low-end accuracy, ideal for detecting dilution early. Ball testers suit faster checks but lack disc finesse.

Understanding Coolant Types and Compatibility

Not all coolants react the same in testers. Traditional green IAT (Inorganic Additive Technology) uses ethylene glycol; modern OAT (Organic Acid Technology) in reds/blues may need type-specific tools. Always match your vehicle’s manual.

• Ethylene glycol: Standard for most cars; toxic but effective.
• Propylene glycol: Less toxic, used in some eco-formulas; slightly higher freeze points.
• HOAT: Hybrid for extended life; check tester scale.

Mixing types can cause gelling—test post-flush.

Safety Precautions During Testing

Coolant is toxic and pressurized when hot. Wear gloves and eye protection. Never test a running engine. Dispose of samples per local hazardous waste rules. Children and pets should stay clear.

If readings show weakness, flush the system: drain old fluid, refill with premixed 50/50, and bleed air. Repeat tests post-service.

When to Replace Coolant Entirely

Low readings signal more than dilution—rust, oil, or age degrade performance. Change every 2-5 years or 30,000 miles. Symptoms warranting full service:

• Cloudy or discolored fluid.
• Overheating or leaks.
• Fewer than 3 discs floating consistently.

Advanced Tips for Year-Round Maintenance

Beyond testing, monitor levels monthly. Use distilled water for top-ups to avoid mineral buildup. In extreme climates, aim for 60% antifreeze. Digital refractometers offer lab-grade precision (£20+) for pros.

Store testers away from sunlight to preserve rubber parts. Calibrate yearly against known mixes if heavy use.

Common Mistakes and Fixes

Avoid these pitfalls for reliable data:

• Bubbles: Tap firmly; tilt slightly if persistent.
• Hot samples: Wait 2+ hours post-drive.
• Wrong coolant type: Verify manual; use strips for OAT.
• Dirty tool: Triple-rinse between tests.

FAQs

Q: Can I use one tester for all coolants?
A: Most disc testers handle ethylene and propylene glycol; OAT may need adjustment or specific scales.

Q: What’s the ideal protection level?
A: 4-5 discs (-30°C+), covering 95% of UK winters.

Q: How often should I test?
A: Bi-annually or after top-ups.

Q: Is Silverline suitable for motorcycles?
A: Yes, if coolant matches car specs.

Q: What if no discs float?
A: Drain and refill immediately to prevent freeze damage.

Integrating these practices ensures engine longevity. Affordable testers like Silverline make pro-level checks accessible to all drivers.
