BMW Direct Water Injection: 4 Key Benefits And Gains

Bmw’s Direct Water Injection (DWI) system marks a significant advancement in internal combustion engine technology, particularly for turbocharged petrol engines. Tested in a 1 Series prototype, this innovation cools the combustion chamber to enable higher compression ratios, resulting in enhanced power output and improved fuel efficiency without compromising drivability.

The Science Behind Direct Water Injection

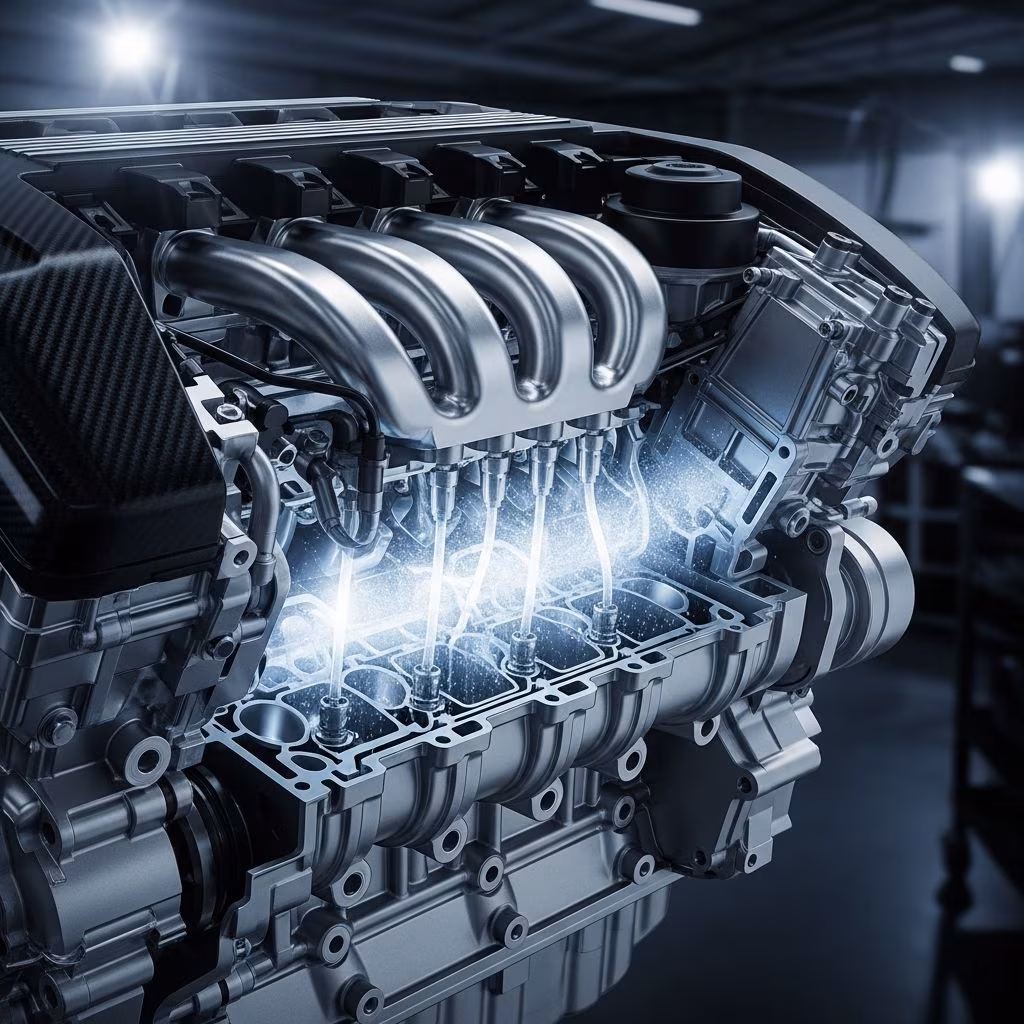

Direct Water Injection involves spraying a fine mist of water into the engine’s combustion chamber or intake manifold at precise moments during the engine cycle. This process dramatically lowers the temperature of the air-fuel mixture, preventing detonation or knocking that typically limits performance in high-boost turbo engines.

In turbocharged setups, compressed air heats up significantly, often reaching 400-500°C before ignition. The water mist evaporates rapidly, absorbing heat and reducing these temperatures to around 330°C, mimicking cooler intake conditions like those on a winter day. This cooling allows engineers to increase the compression ratio— from 9.5:1 to 11.0:1 in the prototype’s 1.5-liter three-cylinder B38 engine—unlocking more efficient combustion.

The system uses a dedicated reservoir, typically 5-7 liters, filled initially with water and replenished by condensation from the air conditioning unit. Sensors monitor engine speed, load, and temperature to inject up to 30% water by volume in the fuel emulsion under high-demand conditions. Water passes through a filter and mixes with fuel in the high-pressure pump before direct injection, ensuring no residue or corrosion issues.

Performance Gains in the 1 Series Prototype

The prototype 1 Series hatchback features a modified 1.5-liter turbo three-cylinder engine producing 215-218 horsepower, a notable jump from the standard 201 hp. Torque also surges, with reports of peaks reaching 320 Nm from 280 Nm, all while maintaining the same rev points.

These improvements stem directly from the higher compression and sustained boost pressures without knock. Bmw engineers demonstrated this during high-speed track tests at Miramas, where the system activated seamlessly during aggressive acceleration.

This table summarizes key enhancements, highlighting how DWI delivers tangible boosts across power, torque, and efficiency metrics.

Fuel Efficiency Breakthroughs

Beyond power, DWI shines in fuel economy. In real-world testing, the prototype achieved average consumption of 4.1 liters per 100 km (57.3 mpg), a 20.9% improvement over non-DWI equivalents during mixed driving from 80 km/h urban speeds to 180 km/h track runs. Another test logged 2.82 l/100 km (112 mpg), an 18.4% gain.

Under full-throttle sprints like 0-80 mph or 50-120 km/h, fuel use dropped by 19%, with water consumption as low as 0.04 liters over 2.5-4 km. Bmw claims 3-8% savings in everyday driving, scaling to 8-10% in high-load scenarios, making it ideal for performance-oriented drivers.

Water usage remains minimal: 0.09-0.11 liters per test cycle, generating 1.7-1.9 liters per hour from A/C condensate. This self-sustaining aspect means 80% of drivers may never need to refill manually.

From Prototype to Production: BMW’s Roadmap

Initially showcased in the M4 MotoGP Safety Car with indirect manifold injection, DWI evolved to direct cylinder injection in the 1 Series prototype. The M4 GTS was an early candidate for production integration, prioritizing performance.

Bmw has signaled series production within a few years from 2015 tests, targeting turbo petrol engines prone to high loads. While the 1 Series prototype won’t reach all markets like the U.S., the tech’s versatility promises broader adoption in future models.

Practical Driving Experience

Drivers notice no difference during operation—the system activates invisibly above operating temperature and specific revs. Track sessions at Miramas confirmed smooth power delivery, with laptops or iPads revealing efficiency gains post-run.

The prototype’s five-door hatchback body remains unassuming, belying the advanced tech under the hood. Acceleration feels punchier, yet refined, with no harshness from elevated compression.

Advantages Over Traditional Cooling Methods

• Intercooler Synergy: Complements air-to-air intercoolers by providing charge cooling directly at the combustion site.
• Knock Resistance: Enables lower-octane fuels with high compression/boost.
• Sustainability: Recycles A/C water, reducing maintenance.
• Versatility: Scalable for everyday and high-performance applications.

Challenges and Considerations

While promising, DWI requires precise engineering to avoid over-injection or contamination. Water quality is critical, necessitating filtration. Extreme climates might demand occasional top-ups for the minority of heavy users.

Long-term durability testing ensures compatibility with engine components, but early prototypes showed no issues.

Broader Implications for Automotive Industry

DWI revives water injection—a WWII-era concept—for modern downsized turbos, bridging efficiency and performance amid electrification shifts. It extends ICE relevance by optimizing fuel use and power without hybridization.

Competitors may follow, as the tech’s simplicity (no complex hardware) offers cost-effective gains.

FAQ

What is BMW Direct Water Injection?

A system that injects water into the combustion chamber to cool the air-fuel mix, allowing higher compression and boost for better power and efficiency.

How much power does it add?

Up to 10% more horsepower and torque in the 1 Series prototype, from 201 hp to 215-218 hp.

Does it improve fuel economy?

Yes, by 3-8% in daily use and up to 20% in high-load tests.

Do I need to refill the water tank often?

Rarely; A/C condensate refills it for most drivers, using just 0.04L over several km of hard driving.

Will this be in production cars?

Bmw planned integration soon after 2015 prototypes, potentially in models like M4 GTS.
