Best SSD Upgrades for PS5 in 2026: Complete Buyer’s Guide

The PlayStation 5’s built-in drive is fast, but it fills up quickly. Big releases regularly occupy 80–120 GB each, so most players eventually hit the dreaded “not enough storage” warning. The good news is that Sony designed PS5 with an internal expansion slot, letting you add a high-speed SSD and keep performance identical to the internal drive — as long as you choose the right model.

This guide distills the key points from recent SSD recommendations and Sony’s own documentation into a practical, step‑by‑step overview. You’ll learn:

• Which technical specs an SSD must meet to work properly in a PS5
• How to compare popular NVMe PCIe 4.0 drives for speed, thermals, and price
• Why a proper heatsink is non‑negotiable
• How much capacity you realistically need today
• Basic installation and setup tips once your SSD arrives

1. What the PS5 Actually Requires from an SSD

PS5 does not accept any random SSD; it has strict requirements for the expansion slot. Sony documents these in its official support pages and system software release notes, and they are non‑optional if you want stable performance.

1.1 Interface, protocol, and form factor

According to Sony, the PS5 expansion slot supports only M.2 NVMe SSDs using PCIe 4.0 x4 lanes.¹ This has a couple of important consequences:

• SATA SSDs are incompatible. Even if they use the M.2 connector, SATA drives are far too slow and won’t work as a PS5 expansion drive.
• PCIe 3.0 NVMe drives are not recommended. The console’s storage system is tuned around PCIe 4.0 performance; older PCIe 3.0 models typically fall below Sony’s speed guidelines.
• M.2 size must be supported. The width must be 22 mm (the standard M.2 width), with supported lengths 2230, 2242, 2260, 2280, or 22110. Most gaming‑oriented drives are 2280.

1.2 Minimum speed: the 5,500 MB/s guideline

Sony’s documentation specifies that the expansion SSD should provide sequential read speeds of at least 5,500 MB/s for PS5 games to load properly.¹ This number is important for two reasons:

• It reflects the bandwidth the console expects when streaming game assets.
• It provides a simple shopping filter: anything slower should be excluded.

Many modern PCIe 4.0 drives advertise maximum read speeds between 7,000–7,500 MB/s. Those headline numbers refer to ideal conditions on a PC, but they’re still a useful indicator that a drive comfortably clears the minimum PS5 requirement.

1.3 Capacity limits and practical sweet spots

The PS5 system software currently supports SSD expansions from 250 GB up to 8 TB.^1,4 However, very small capacities are not recommended for real‑world use because large games fragment your space quickly. In practice:

• 250 GB / 500 GB: technically compatible, but too small unless you play very few titles.
• 1 TB: the most balanced option for most players; roughly doubles usable storage over the stock drive.
• 2 TB–4 TB: ideal for big libraries, multiple service subscriptions, or sharing a console between several users.

1.4 Physical clearance and heatsink height

Inside the PS5, the M.2 expansion bay has limited vertical clearance. Both Sony’s guidelines and storage manufacturers emphasize that the SSD plus heatsink must not exceed the bay’s maximum height, or you’ll have trouble closing the cover and maintaining proper airflow.^1,4 Many SSDs now ship with PS5‑compatible integrated heatsinks, but if you choose a bare drive, check the combined height of the SSD + third‑party heatsink against Sony’s published limits.

2. Core Buying Criteria: What Really Matters

Once you filter out incompatible drives, the SSD market still looks crowded. These are the factors that actually matter for PS5 performance and long‑term reliability.

2.1 Performance: more than just sequential read speeds

Manufacturers highlight peak sequential reads/writes because these numbers are easy to compare. For PS5, sequential reads affect loading and streaming, but you should also consider:

• Random read/write IOPS: these describe how quickly the drive handles many small operations, similar to how games access lots of small files.
• Controller quality: high‑end controllers better manage heat, wear‑leveling, and sustained loads.
• Sustained performance: some drives hit top speed briefly but throttle under longer sessions.

Third‑party reviews from established tech outlets and independent testing labs are very useful here, because they run standardized benchmarks, including thermal and sustained workload tests.

2.2 Endurance and warranty

SSDs wear out slowly as you write data to them. Manufacturers express endurance in TBW (terabytes written) and pair this with a time‑based warranty, usually five years for quality drives. For a PS5 owner who mainly installs games and applies patches:

• A 1 TB drive with 600 TBW means you could rewrite the entire drive hundreds of times before hitting rated endurance.
• For typical console use, such drives are likely to last the life of the console or longer.

Higher‑endurance models can be reassuring if you frequently reinstall large games, capture lots of gameplay clips, or plan to reuse the drive in a PC later.

2.3 Thermals and heatsink design

PCIe 4.0 SSDs can draw significant power under sustained transfers, generating heat that must be dissipated. Research from drive vendors and independent labs shows that NVMe drives without adequate cooling can easily reach temperatures where thermal throttling kicks in, reducing performance to protect the hardware.^2,3

Because the PS5 expansion bay is relatively confined, the safest option is:

• A model with a pre‑installed, PS5‑compatible heatsink certified by the manufacturer.
• Or a high‑quality third‑party heatsink explicitly designed to stay within PS5’s height limit.

The heatsink does not make a slow drive magically fast, but it helps a fast drive stay fast during long gaming sessions and large downloads.

2.4 Price per gigabyte

SSD prices have fallen significantly in recent years due to advances in NAND manufacturing and increased competition.² When comparing options, calculate the cost per GB or per TB. For example, if a 1 TB drive costs half the price of a 2 TB model, their price per GB is equal; if the 2 TB drive is less than double the price, it’s actually more cost‑effective per GB.

Use real prices in your region and check seasonal sales; high‑end drives frequently drop in price during major promotional events.

3. Types of SSDs That Work Well in PS5

While this guide doesn’t endorse specific product models, most PS5‑ready SSDs fall into a few broad categories. Understanding these helps you map them to your needs and budget.

3.1 Premium PCIe 4.0 drives with factory heatsinks

These are top‑tier NVMe SSDs that ship with integrated heatsinks and are often marketed specifically for consoles. Typical traits include:

• Sequential reads around 7,000–7,500 MB/s
• High TBW ratings and 5‑year warranties
• Heatsinks designed not to exceed PS5’s expansion bay height

They tend to be the most expensive but are also the most straightforward: install, format, and play, with minimal configuration or research.

3.2 High‑value PCIe 4.0 drives without heatsinks

Many PC‑oriented SSDs offer excellent performance but are sold as bare modules. Paired with a third‑party PS5‑compatible heatsink, they can offer:

• Similar real‑world speeds to premium drives at a lower price
• Flexibility to choose a specific heatsink design or brand
• Potentially better price‑per‑GB for larger capacities such as 2 TB

The trade‑off is added complexity: you must assemble the heatsink correctly, ensuring good contact with the controller and NAND chips, and double‑check dimensions.

3.3 Budget PCIe 4.0 options

Cheaper drives often hit the minimum PS5 requirements but may use lower‑tier controllers or QLC NAND. They can still be a solid upgrade from the internal space alone, especially for more casual players, but note that:

• Sustained performance under long transfers may be lower.
• Endurance ratings (TBW) can be lower than midrange or premium models.
• Firmware support and long‑term updates may be less robust, depending on the brand.

Researching user feedback and independent testing is particularly important in this tier to avoid models with known thermal or firmware issues.

4. Internal vs External SSDs for PS5

PS5 supports both internal NVMe storage and external drives via USB. However, they serve different purposes.

4.1 What you can do with an internal M.2 SSD

• Install and play PS5 games directly from it at full speed.
• Store and play PS4 titles with performance similar to or better than running from the internal drive (depending on the SSD).
• Move games between the internal SSD, expansion SSD, and external drives.

This is the only way to actually expand your usable PS5 game storage without compromising performance.

4.2 What external USB SSDs are good for

USB SSDs and hard drives are still useful for PS5 owners, but with limitations documented by Sony and major retailers:⁵

• You can store PS5 games on external drives, but to play them you must move them back onto the internal or M.2 SSD.
• You can play PS4 games directly from compatible external USB drives, which is handy for large backlogs.
• External SSDs are ideal as a “cold storage” vault for games you don’t play every week.

If your goal is simply to install more PS5 titles at once, an internal M.2 SSD is the only practical long‑term solution.

5. How to Install and Set Up Your PS5 SSD

Installing an SSD in PS5 is designed for end users. Sony provides an official walkthrough, and SSD vendors often include console‑specific instructions. The following summary is for orientation only; always double‑check against current official guidance.

5.1 Preparation and safety

• Update your PS5 system software to the latest version to ensure full M.2 support.
• Power down the console completely, unplug all cables, and let it cool.
• Work on a clean, flat surface with good lighting.
• Have a small Phillips (cross‑head) screwdriver ready.

5.2 Accessing the expansion bay

The expansion slot is located under one of the PS5’s outer covers:

• Gently remove the plastic cover following Sony’s instructions to avoid damage.
• Locate the metal cover over the M.2 slot and remove the retaining screw.
• You’ll see the M.2 connector with standoff positions for various card lengths.

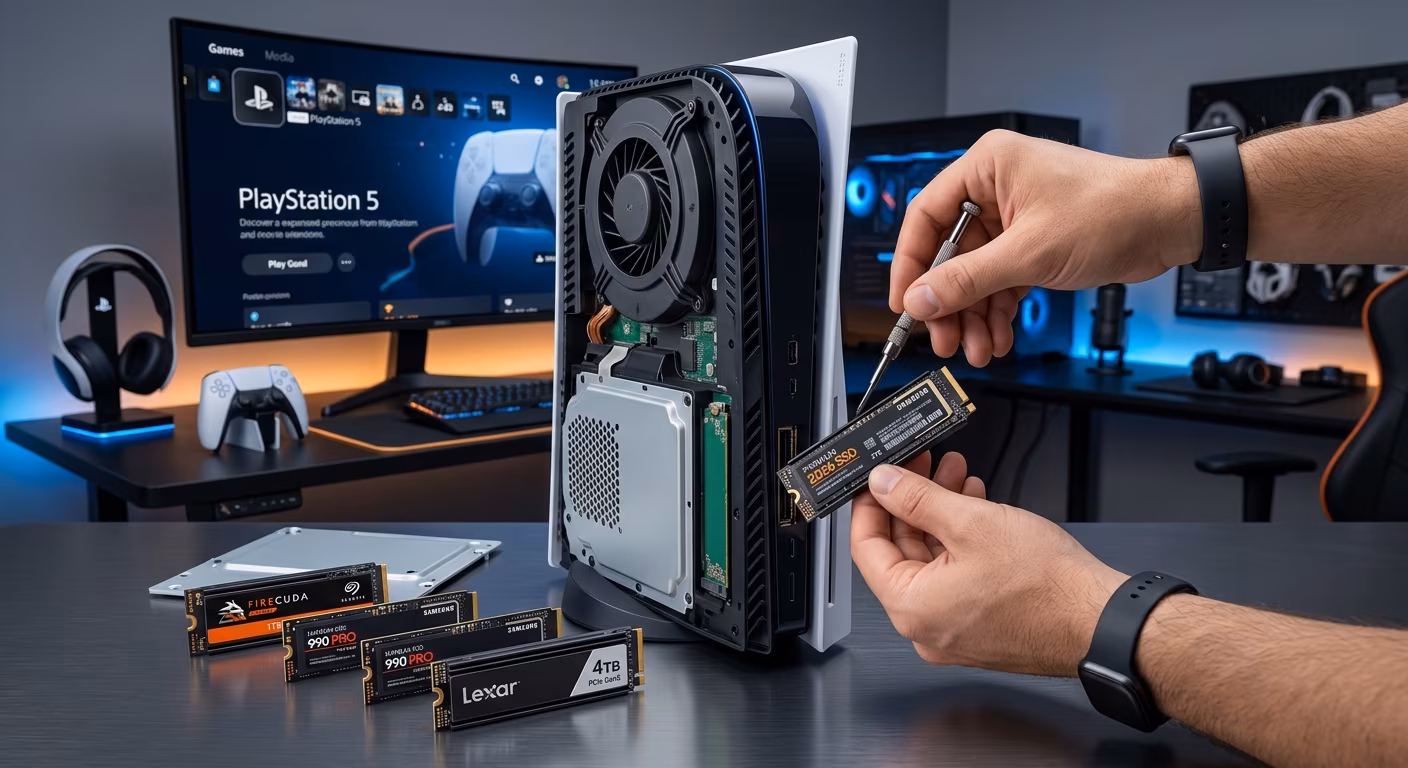

5.3 Installing the drive

• If your SSD has a separate heatsink, attach it according to the manufacturer’s instructions before installation.
• Align the notch on the M.2 SSD with the connector and insert it at a slight angle.
• Gently press the drive down and secure it with the screw at the appropriate standoff.
• Reinstall the metal bay cover and then the PS5 outer cover.

5.4 Formatting and using the new storage

When you power the console back on, PS5 should automatically detect the new M.2 SSD and prompt you to format it. Once the format completes:

• Go to Settings > Storage to confirm the drive is recognized.
• Optionally set PS5 to install new PS5 games directly to the M.2 SSD.
• Move existing games between internal and expansion storage to balance space.

This process does not erase your existing internal games or saves, but you should always keep cloud or USB backups of your save data as a general precaution.

6. Choosing the Right SSD for Your Situation

Putting everything together, here’s how different player profiles map to SSD choices.

6.1 For solo players with a modest library

If you mainly play a handful of big titles at a time and rotate them occasionally:

• Capacity: 1 TB is usually enough.
• Tier: midrange PCIe 4.0 drive with or without a heatsink.
• Priority: reliability, good warranty, sensible price.

6.2 For heavy users and subscription gamers

Players subscribed to several services or who like to keep dozens of games installed will benefit from:

• Capacity: 2 TB or higher.
• Tier: high‑end PCIe 4.0 with strong sustained performance.
• Priority: cost per GB, endurance, and thermals.

6.3 For content creators and media‑heavy users

If you capture a lot of gameplay clips, screenshots, or use your PS5 as a media hub:

• Capacity: 2–4 TB depending on how often you archive content to a PC.
• Tier: drives with higher TBW ratings and robust cooling.
• Priority: endurance and stable performance over long sessions.

7. Frequently Asked Questions about PS5 SSD Upgrades

7.1 Will any PCIe 4.0 M.2 SSD work in a PS5?

No. The drive must be an M.2 NVMe PCIe 4.0 x4 SSD that meets Sony’s documented speed and size requirements, and it must fit in the expansion bay with a suitable heatsink. Always check official specs and user reports before buying.

7.2 Do I really need a heatsink?

While some bare drives may function without one, both Sony and SSD manufacturers strongly recommend using a heatsink to prevent overheating and thermal throttling.^1,4 A PS5‑compatible heatsink is effectively mandatory for long‑term reliability.

7.3 Will installing an SSD void my PS5 warranty?

Sony explicitly designed the PS5 with a user‑accessible M.2 slot and documents how to install an SSD. Installing a compatible drive following official instructions should not void your warranty; physical damage caused during installation may be treated differently. Always consult current warranty terms in your region.

7.4 Are SSD speeds above 7,000 MB/s worth paying extra for?

Drives advertising 7,000–7,500 MB/s sequential reads comfortably exceed Sony’s minimum and are useful for ensuring performance headroom. However, once a drive meets the baseline, differences in everyday game loading can be small; other factors like thermals, endurance, and price per GB often matter more.

7.5 Can I use the PS5 SSD in a PC later?

Yes, most M.2 NVMe PCIe 4.0 SSDs are standard PC components. If you upgrade your console or change platforms in the future, you can usually migrate the drive to a compatible desktop or laptop, provided it physically fits and your motherboard supports PCIe 4.0 (or at least PCIe NVMe in general).
