Automatic Transmission Fluid Coupling Systems

Modern automatic vehicles rely on a sophisticated component called a torque converter to transfer power from the engine to the transmission without requiring a traditional mechanical clutch pedal. This fluid-based system has become essential to how automatic transmissions function, enabling smooth acceleration, effortless stops, and the seamless driving experience that automatic vehicle owners have come to expect.

The Fundamental Difference Between Manual and Automatic Power Transfer

To understand why torque converters exist, it’s helpful to first examine how manual transmissions operate. In a manual transmission vehicle, the driver physically controls a clutch pedal that engages and disengages the connection between the engine and gearbox. When the clutch pedal remains unpressed, an internal plate makes contact with the engine, allowing rotational force to flow through to the gears. Pressing the clutch pedal causes this plate to move away, breaking the connection and enabling the driver to shift gears or bring the vehicle to a stop without stalling the engine.

Automatic transmissions cannot rely on this manual intervention. Instead, they require a method to maintain engine operation independently of transmission engagement, particularly when the vehicle is stationary. This is where the torque converter becomes indispensable. Operating as a fluid-based alternative to the mechanical clutch, the torque converter accomplishes the same fundamental objective—connecting and disconnecting engine power—but through entirely different mechanical principles.

Core Principles of Hydrodynamic Fluid Coupling

The torque converter operates on hydrodynamic principles, utilizing what engineers call fluid coupling technology. Rather than employing solid mechanical components to transfer force, the system leverages the kinetic energy of pressurized transmission fluid to transmit rotational power from the engine to the transmission.

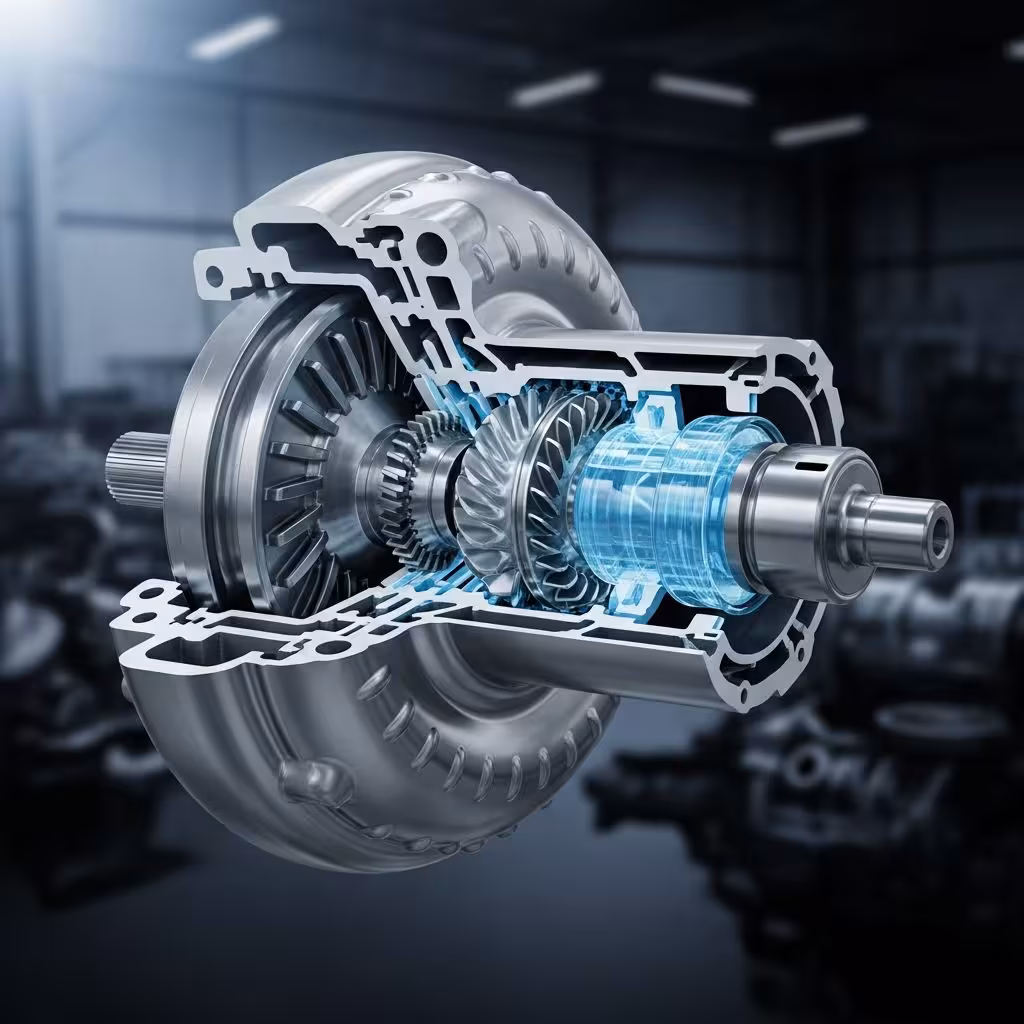

The converter’s distinctive appearance resembles a sealed metal doughnut, and this shape serves a specific functional purpose. Inside this housing, two turbine fans face each other across a chamber filled with thick transmission fluid. These components work together in a carefully orchestrated dance of fluid dynamics to create continuous power transfer while maintaining the flexibility needed for smooth automatic operation.

Internal Components and Their Functions

Understanding how a torque converter functions requires examination of its three primary internal components, each serving a distinct but complementary role in the power transfer process.

The Impeller: Engine-Driven Pump

The impeller functions as the primary driver of the entire system. This fan-like component connects directly to the engine through a shaft, meaning it rotates at whatever speed the engine is running. As engine revolutions increase, the impeller spins faster, centrifugally flinging transmission fluid outward toward the converter’s outer edges, similar to the spin cycle of a washing machine. This action creates a vacuum at the impeller’s center that continuously draws additional fluid inward, establishing a continuous circulation pattern within the converter housing.

The Turbine: Transmission-Driven Output

The turbine represents the receiving end of the power transfer process. Connected to the transmission input shaft, this second fan-like component has curved blades specifically engineered to respond to fluid movement. As pressurized transmission fluid strikes the turbine’s blades, the curved blade geometry forces the fluid to change direction before exiting the turbine’s center. This directional change creates rotational force that spins the turbine, which in turn rotates the transmission shaft and ultimately drives the vehicle’s wheels.

The Stator: Efficiency Optimizer

Positioned at the converter’s center, the stator serves a crucial efficiency function that distinguishes modern torque converters from simple fluid couplings. After fluid exits the turbine, the stator redirects it back toward the impeller, but in a controlled manner that prevents the fluid from spinning backward and creating resistance. This redirection dramatically improves system efficiency by ensuring that maximum torque reaches the transmission rather than being dissipated through turbulence or heat generation. The stator remains stationary during operation (hence its name), held in place while performing its redirective function.

How Power Transmission Occurs During Normal Operation

The power transmission process within a torque converter represents a continuous cycle that adapts to engine speed and driving conditions:

• Engine rotation drives the impeller, which accelerates transmission fluid through centrifugal force
• Pressurized fluid flows toward the turbine, striking its curved blades with increasing force as engine speed increases
• The turbine rotates in response to fluid pressure, transmitting this rotational force through the transmission shaft
• The stator captures returning fluid and redirects it back toward the impeller at optimal angles, minimizing energy loss
• This cyclical process continues as long as the engine is running and the converter housing remains engaged

The Critical Advantage at Idle and While Stopped

One of the torque converter’s most significant advantages over traditional mechanical clutches is its ability to permit engine operation while the vehicle remains stationary. Because fluid coupling only occurs when the impeller spins fast enough to generate sufficient pressure within the transmission fluid, the engine can continue running at idle without forcing the transmission gears or wheels to rotate. This capability enables drivers to sit comfortably at traffic signals with the engine running and brake pedal engaged, ready to accelerate smoothly when traffic conditions permit movement.

This feature fundamentally changed the driving experience for automatic transmission vehicles, eliminating the need for constant brake pressure (as in some manual vehicles) and providing superior comfort in stop-and-go traffic situations.

Torque Multiplication and System Efficiency

Beyond simply transferring power, the torque converter possesses an inherent ability to multiply engine torque, particularly during acceleration from a standstill. The fluid coupling creates a mechanical advantage where the turbine can briefly rotate at a different speed than the impeller, allowing for torque amplification that provides strong initial acceleration. As vehicle speed increases and the turbine speed approaches the impeller speed, this multiplication effect diminishes, and the system transitions toward direct coupling for highway efficiency.

The stator’s role proves essential to this efficiency improvement. By preventing backward fluid flow and optimizing fluid direction, the stator ensures that energy loss through heat generation remains minimal compared to simple fluid couplings that lack this redirective component.

Comparing Torque Converters to Modern Alternatives

Maintenance and Long-Term Durability

Torque converter systems have demonstrated remarkable durability when properly maintained. The transmission fluid requires periodic inspection and replacement according to manufacturer specifications, as fluid degradation can reduce the efficiency of power transfer and increase heat generation. Regular fluid changes help preserve the converter’s internal components and maintain smooth operation throughout the vehicle’s service life.

Modern torque converters often include a lockup clutch mechanism that engages at highway speeds, creating a mechanical connection between impeller and turbine to improve fuel economy by eliminating fluid slippage during steady-state cruising. This enhancement bridges the efficiency gap between traditional fluid coupling and more modern transmission technologies.

The Evolution of Transmission Fluid Coupling Technology

The torque converter represents a significant evolutionary step beyond earlier fluid coupling designs. While simple fluid couplings were used in early automatic vehicles, they lacked the efficiency enhancement provided by the stator component. Modern converters incorporate advanced stator designs, improved blade geometries, and sophisticated lockup clutch mechanisms that have progressively enhanced vehicle efficiency and driving performance.

Contemporary automotive engineering continues to refine these systems, with manufacturers developing converters that provide better torque multiplication characteristics, improved heat dissipation, and enhanced responsiveness to transmission control system commands. These advances ensure that automatic transmissions continue to offer competitive efficiency compared to other transmission technologies.

Frequently Asked Questions

What is the primary function of a torque converter?

The torque converter serves as the automatic transmission’s equivalent to a manual transmission’s clutch pedal. It transfers rotational power from the engine to the transmission while allowing the engine to continue running when the vehicle is stopped, without stalling or forcing the wheels to turn.

How does the torque converter prevent the car from stalling at traffic lights?

The torque converter only creates a fluid coupling when the impeller spins fast enough to pressurize the transmission fluid. At idle speeds, insufficient fluid pressure exists to rotate the turbine, so the transmission remains disengaged even though the engine continues running.

Why is transmission fluid crucial to torque converter operation?

Transmission fluid is the working medium through which all power transfer occurs. It must possess specific viscosity characteristics to properly transmit force while maintaining appropriate pressure and lubrication throughout the converter and transmission system.

Can a torque converter be repaired or must it be replaced?

Torque converters are sealed units that typically cannot be economically repaired. If internal components fail, the entire converter assembly is usually replaced as a unit rather than attempting internal repairs.

How does a lockup clutch improve efficiency?

A lockup clutch mechanically couples the impeller and turbine at highway speeds, eliminating fluid slippage and reducing energy loss as heat. This direct connection improves fuel economy during steady-speed driving.
