Air Suspension Explained: Guide To Benefits & Drawbacks

Air suspension represents a sophisticated evolution in automotive engineering, replacing traditional metal coil springs with pressurized air chambers to deliver unmatched adaptability and comfort. This technology enables vehicles to dynamically adjust their ride height and stiffness, catering to diverse driving conditions from city streets to rugged terrains.

The Fundamentals of Air-Based Suspension Technology

At its core, air suspension employs inflatable air bags—often termed air springs or bellows—that function similarly to coil springs but offer greater flexibility. These components, typically positioned at each wheel arch in lieu of conventional springs, compress and expand using compressed air to absorb road shocks. Unlike rigid metal springs, air’s compressible nature allows for finer control over suspension response, potentially smoothing out a broader spectrum of road irregularities.

Air bags are constructed from durable rubber reinforced with textile layers, akin to tire materials, ensuring they withstand repeated inflation cycles. When a wheel encounters a pothole or speed bump, the air inside the bag compresses to cushion the impact, then rebounds to restore equilibrium. This process minimizes vibrations transmitted to the cabin, fostering a serene driving experience.

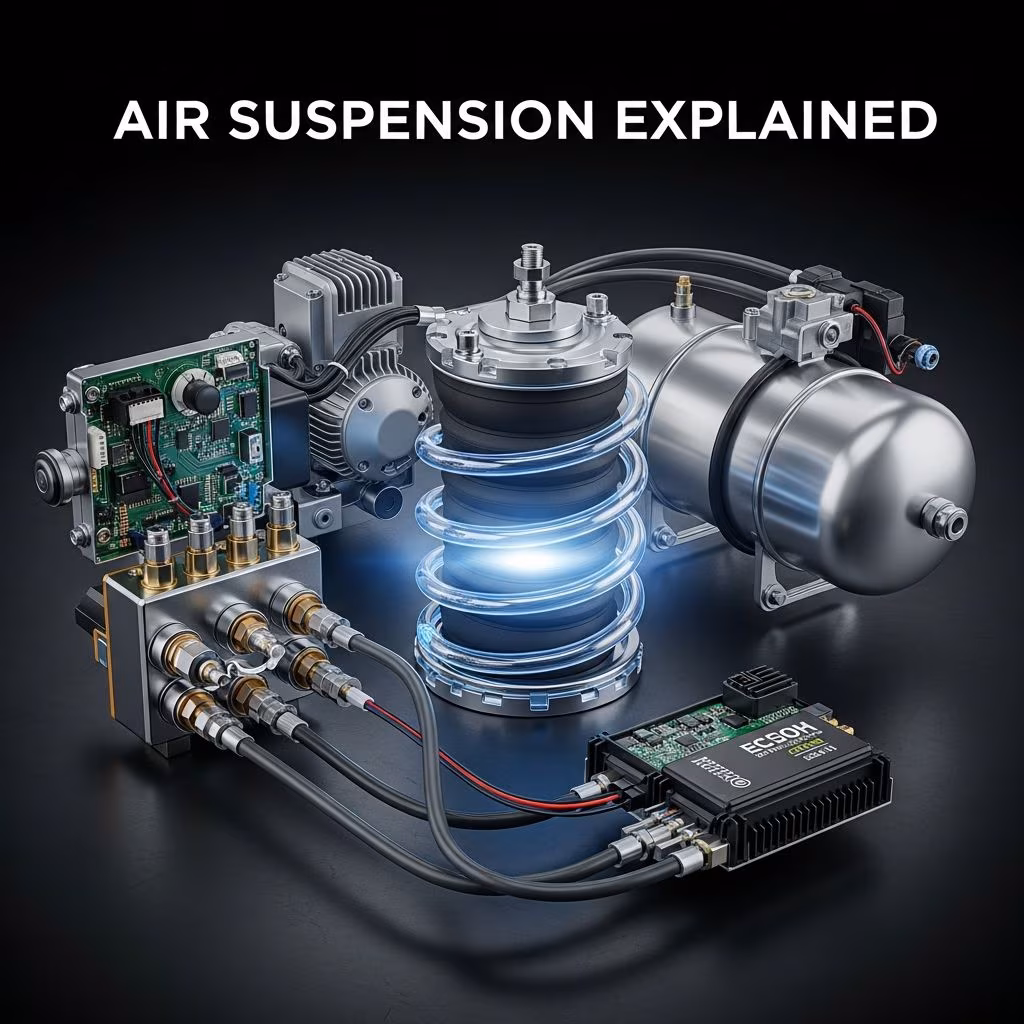

Core Components Powering Air Suspension Systems

A fully functional air suspension setup integrates several interdependent parts for seamless operation:

• Air Compressor: The heart of the system, this electric pump draws in atmospheric air, pressurizes it, and supplies it on demand.
• Reservoir Tank: Stores excess compressed air, acting as a buffer to reduce compressor workload and ensure quick responses.
• Manifold and Valves: Distributes air precisely to individual bags via electronic controls, enabling targeted adjustments.
• Air Lines and Seals: Convey pressurized air throughout the system while preventing leaks through robust gaskets.
• Height Sensors and ECU: Monitor vehicle posture in real-time, signaling the control module to inflate or deflate bags as needed.
• Dampers/Shocks: Integrated units that manage rebound and compression rates, often electronically adjustable for optimal damping.

These elements collaborate under electronic oversight. For instance, sensors detect load changes or speed variations, prompting the ECU to command air redistribution for balanced handling.

Operational Mechanics: From Sensing to Adjustment

The system’s workflow begins with height sensors scanning the distance between the chassis and road. Data feeds into the electronic control unit (ECU), which calculates required pressure shifts. The compressor activates if tank reserves are low, pushing air through the manifold into designated lines. Air springs then inflate to elevate ride height or stiffen for cornering, or deflate for a lowered stance.

Advanced variants incorporate driver inputs like mode selectors—comfort, sport, or off-road—altering parameters automatically. In self-leveling modes, rear bags inflate under heavy cargo, preventing sagging and maintaining headlight aim. This closed-loop feedback ensures continuous refinement, adapting millisecond by millisecond.

Key Advantages Elevating Air Suspension

Air suspension’s appeal stems from tangible performance gains across multiple domains.

Exceptional Ride Comfort

Primary among benefits is superior isolation from road harshness. Air springs excel at dampening high-frequency vibrations and low-amplitude undulations, gliding over cracks and potholes with poise. Paired with adaptive dampers, they tailor firmness to conditions, delivering luxury sedan serenity in SUVs or trucks.

Enhanced Vehicle Handling and Stability

Dynamic adjustments mitigate body roll during turns by firming outer springs and softening inners, preserving tire contact. This yields precise steering and reduced dive under braking, bolstering confidence at speed. Systems responsive to lateral forces distribute weight evenly, curbing understeer or oversteer.

Versatile Ride Height Control

Manual or automatic height modulation unlocks practicality. Raise for off-roading to boost ground clearance; lower for aerodynamics at highway speeds or easier garage entry. Aesthetic enthusiasts appreciate the slammed look, while families value step-in height adjustments.

Automatic Load Compensation

Ideal for hauling or towing, self-leveling prevents rear-end drop under payloads, stabilizing trailers and preserving visibility. This evens wear on tires and drivetrain, extending component life.

Reduced Component Stress

Smoother operation lessens fatigue on chassis, bushings, and joints. Even load distribution minimizes uneven tire wear, potentially cutting long-term maintenance.

To illustrate benefits quantitatively:

Potential Drawbacks and Limitations

Despite merits, air suspension introduces challenges.

Prohibitive Repair Expenses

Air bags degrade from heat, ozone, or punctures, leading to leaks and sagging. Replacements cost thousands, far exceeding coil springs. Compressor failures or valve issues compound expenses, often prompting conversion to coils.

Increased Weight and Complexity

Extra hardware—compressor, tank, electronics—adds 50-100 pounds, slightly harming efficiency. More parts mean higher failure risk and intricate diagnostics.

Maintenance Demands

Regular checks for leaks, dryer function (moisture prevention), and sensor calibration are essential. Neglect accelerates wear, especially in harsh climates.

Performance Trade-offs

While refined, some report delayed responses versus mechanical systems. Extreme off-road use risks bag damage.

Real-World Applications Across Vehicle Types

Luxury marques like Mercedes-Benz, BMW, and Audi integrate air suspension for plush touring. SUVs (Range Rover, Porsche Cayenne) leverage height for trails. Pickups (Ford F-150, Ram 1500) prioritize towing stability. Aftermarket kits appeal to customizers seeking stance control.

Comparing Air Suspension to Alternatives

Versus coilovers: Air offers adjustability sans tools; coilovers excel in track rigidity. Hydropneumatic (Citroën legacy) uses fluid-air but proves costlier. Magnetorheological dampers complement air for ultimate tunability.

Future Innovations in Suspension Tech

Ongoing developments promise fully active systems with AI-driven predictions, integrating lidar for preemptive adjustments. Lighter materials and efficient compressors aim to offset weight penalties, broadening adoption.

Frequently Asked Questions (FAQs)

Is air suspension reliable for daily driving?

Yes, when maintained; premium systems endure 100,000+ miles, though leaks demand vigilance.

Can I retrofit air suspension to my vehicle?

Aftermarket kits exist for trucks and classics, but professional installation ensures ECU compatibility.

How does air suspension affect fuel economy?

Minimal impact (1-2% drop) from weight; height lowering at speed recovers via aerodynamics.

What’s the lifespan of air bags?

Typically 80,000-120,000 miles, varying by usage and environment.

Does air suspension improve towing safety?

Absolutely—load leveling stabilizes trailers, reduces sway, enhances braking.
