4×4 Systems Explained: Types, Parts, And How To Choose

Four-wheel drive technology powers vehicles across diverse terrains, delivering torque to all four wheels for enhanced grip and control. This comprehensive guide breaks down the mechanics, types, and applications of these systems, helping drivers choose the right setup for their needs.

Foundations of Four-Wheel Power

At its core, a four-wheel drive (4×4 or 4WD) system transmits engine power to both front and rear axles, unlike traditional two-wheel drive vehicles that rely on either front or rear wheels alone. This distribution maximizes traction, especially in challenging conditions like mud, snow, or sand.

Most modern 4×4 vehicles incorporate a transfer case connected to the transmission. This component splits torque between the axles, often in a 50:50 ratio for balanced performance. In contrast, all-wheel drive (AWD) systems are typically more seamless for on-road use, automatically adjusting power without driver input.

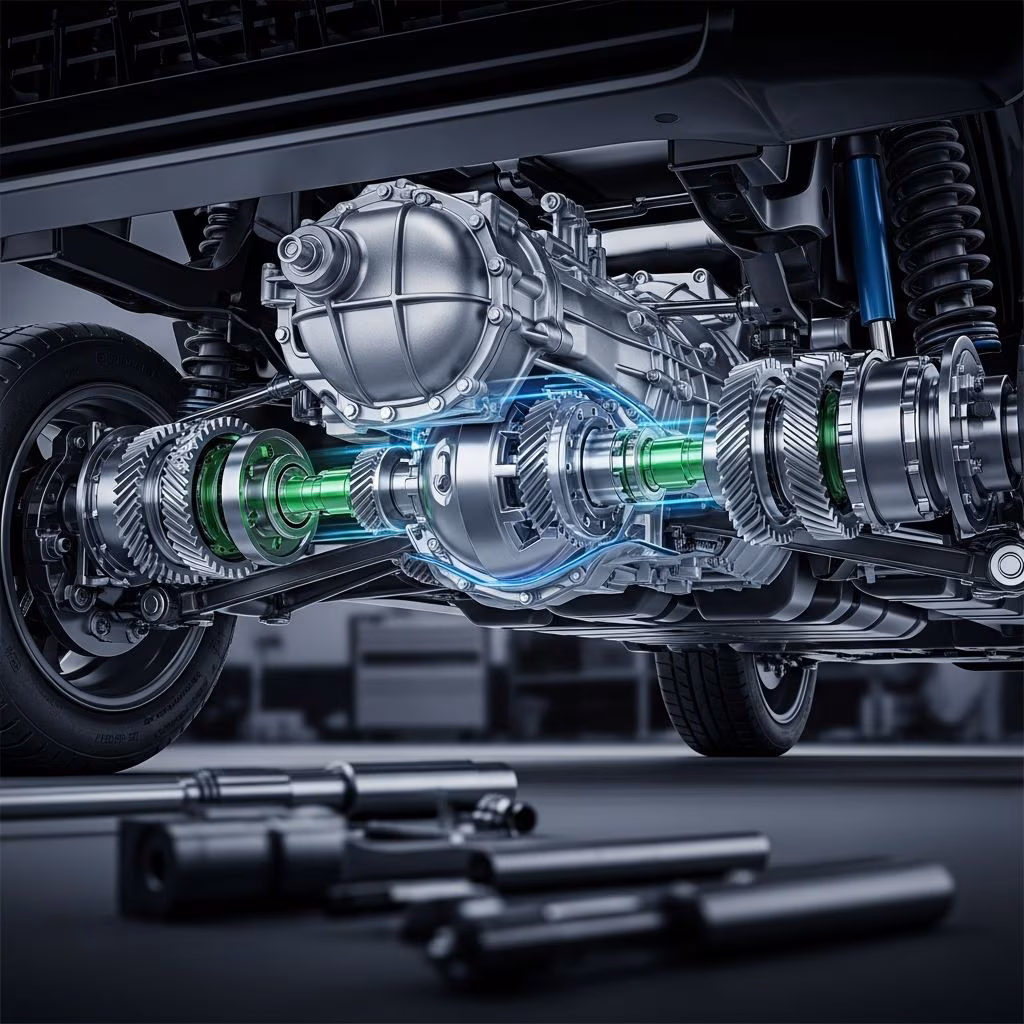

Core Components Driving Traction

Several key elements enable 4×4 functionality:

• Differentials: These allow wheels on the same axle to rotate at different speeds during turns, preventing tire scrub. Open differentials send power to the wheel with least resistance, which can lead to wheel spin on low-grip surfaces.
• Limited-Slip Differentials (LSDs): An upgrade over open diffs, LSDs limit slip by transferring torque to the wheel with more grip, using mechanical clutches or electronic controls. Common in performance 4x4s for slippery conditions.
• Locking Differentials: These fully lock axles or wheels to rotate at identical speeds, ensuring equal torque distribution. Activated manually or electronically, they excel off-road by conquering obstacles where one wheel might lift off the ground.

Center differentials in full-time systems manage front-to-rear speed differences, often with viscous couplings or electronic clutches for variable torque splits.

Modes of Operation: Part-Time vs. Full-Time

4×4 systems operate in distinct modes tailored to conditions:

Part-time systems rigidly couple axles, ideal for off-road but risky on dry pavement due to driveline wind-up—torsional stress from differing axle speeds. Full-time setups mitigate this with inter-axle differentials.

Advanced Traction Technologies

Manufacturers innovate beyond basics:

• Subaru Symmetrical AWD: Boxer engine and straight-line drivetrain ensure equal driveshaft lengths, promoting neutral handling and consistent power delivery via viscous or electronic center couplings.
• Audi Quattro: Pioneered permanent AWD with Torsen differentials for proactive torque vectoring, sending power to axles with grip before slip occurs.
• Haldex Systems: Common in transversely mounted engines (e.g., Volvo, VW), these use multi-plate clutches to engage front wheels on demand, transmitting up to 50% torque forward while slipping minimally.

Electronic aids like traction control further enhance performance by braking spinning wheels, mimicking LSD behavior.

Suspension and Off-Road Enhancements

Robust suspension complements drivetrains:

• Leaf Springs: Durable for heavy loads in pickups, providing articulation for uneven terrain.
• Independent Suspension: Improves on-road comfort in SUVs while maintaining off-road capability.

Lockable front, center, and rear diffs, as in the Mercedes G-Class, create unstoppable traction by enforcing 50:50 splits across all wheels.

AWD vs. 4WD: Key Distinctions

While overlapping, AWD and 4WD differ in design:

• AWD: Always active or on-demand, optimized for pavement with seamless transitions. Suited for crossovers and daily drivers.
• 4WD: Driver-selectable, part-time for off-road prowess. Requires low-traction surfaces to avoid binding.

AWD shines in rain; 4WD conquers rocks. Hybrids like full-time 4WD bridge both worlds.

Practical Applications and Selection Guide

Choosing a system depends on use:

• Daily Commuters: On-demand AWD for safety without complexity.
• Off-Road Enthusiasts: Part-time 4WD with low-range and locks.
• Towing/Heavy Duty: Full-time with LSDs and robust diffs.

Engage 4WD proactively on loose surfaces; disengage on dry roads to prevent damage. Low-range multiplies torque for crawling.

Maintenance Essentials for Longevity

Regular checks ensure reliability:

• Inspect transfer case and diffs for fluid levels.
• Monitor U-joints and CV boots for wear.
• Avoid prolonged high-speed 4WD use in part-time systems.

Proper use extends component life, maximizing capability.
