10BASE-T Ethernet: Legacy Standard and Implementation

The evolution of networking technology has transformed dramatically over the past several decades, yet understanding foundational standards remains essential for network professionals and enthusiasts. Among these cornerstones stands 10BASE-T, an Ethernet specification that revolutionized local area network connectivity during the 1980s and 1990s. This standard established the framework for twisted-pair copper cabling in networking environments, enabling millions of devices to communicate across organizations worldwide. Despite being largely superseded by faster alternatives, the principles embedded in 10BASE-T continue to influence modern networking architecture and remain relevant in legacy system maintenance.

Decoding the 10BASE-T Nomenclature

The designation “10BASE-T” serves as a concise identifier established by the Institute of Electrical and Electronics Engineers (IEEE) to categorize this particular Ethernet implementation. Each component of this nomenclature carries specific meaning regarding the standard’s technical characteristics and capabilities.

The numeral “10” at the beginning denotes the maximum transmission capacity, representing 10 megabits per second. This throughput capacity defined the boundary for data transfer rates when the standard was developed, establishing expectations for network performance across connected devices. The middle segment, “BASE,” refers to baseband signaling methodology. Unlike broadband systems that employ frequency modulation to transmit multiple signals simultaneously across a single medium, baseband technology transmits data signals directly without modulation. This approach simplifies the transmission process and reduces hardware complexity, making it economical for local network deployments. The final component, “T,” indicates the cable type specifically: twisted-pair copper wiring. This designation distinguishes 10BASE-T from other Ethernet variants that utilize different physical media, such as coaxial cable used in 10BASE2 and 10BASE5 implementations.

IEEE 802.3 Standardization and Technical Framework

The IEEE 802.3 standard encompasses the specifications governing 10BASE-T implementation, ensuring interoperability across equipment manufactured by different vendors. This standardization effort proved instrumental in preventing vendor lock-in and promoting widespread adoption of twisted-pair Ethernet technology. The standard meticulously details acceptable parameters for signal characteristics, connector specifications, cable construction, network topology, and performance thresholds. By establishing these precise requirements, IEEE 802.3 enabled engineers and manufacturers to develop compatible components that could seamlessly integrate into networks regardless of their origin or design timeline.

The standardization process also incorporated provisions for maximum segment lengths, repeater spacing requirements, and link establishment parameters. These specifications balance practical installation considerations with performance reliability, ensuring that networks constructed according to 10BASE-T guidelines would operate predictably across diverse physical environments and implementation scenarios.

Cable Infrastructure and Physical Specifications

10BASE-T networks depend upon unshielded twisted-pair (UTP) cabling that incorporates specific construction characteristics to minimize interference and maintain signal integrity. The standard accepts Category 3, Category 4, and Category 5 cable types, each offering progressively improved performance characteristics through enhanced shielding and conductor quality.

The twisted-pair construction itself serves multiple purposes in network cabling. By intertwining conductors in a helical pattern, this design reduces electromagnetic interference susceptibility and minimizes crosstalk between adjacent wire pairs. The twisting pattern also creates balanced impedance characteristics that align with transmission line theory principles, optimizing signal propagation across the cable length.

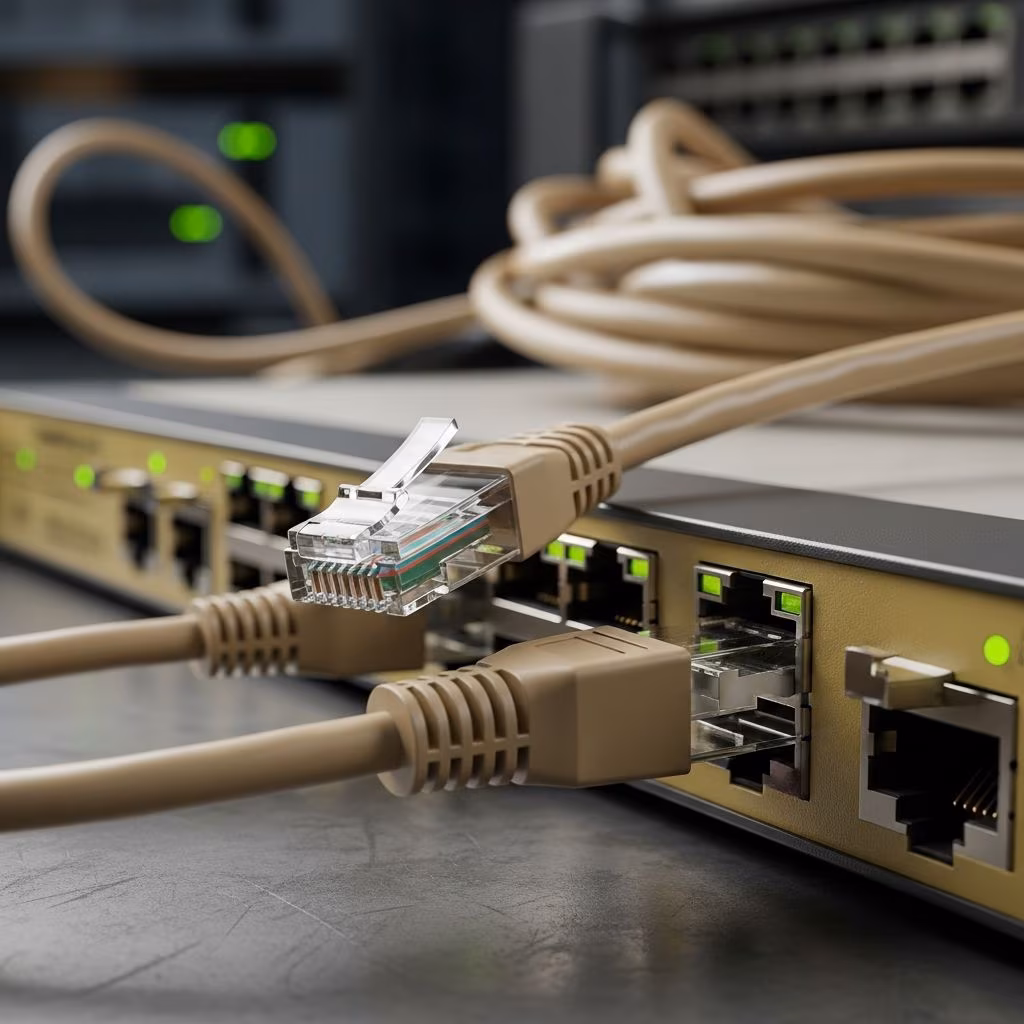

Cable termination employs RJ45 connectors, which provide standardized mechanical interfaces for connecting cables to network equipment. These eight-position connectors accommodate the four pairs of conductors present in standard Ethernet cabling. The physical arrangement of conductors within RJ45 connectors follows specific wiring standards, either T568A or T568B configuration, though both produce functionally equivalent connections when applied consistently throughout the network.

Maximum segment length restrictions limit 10BASE-T connections to 100 meters between network devices and central distribution equipment. This constraint stems from signal attenuation characteristics in twisted-pair copper conductors; beyond approximately 100 meters, signal degradation becomes pronounced enough to compromise reliable data transmission. For installations requiring greater physical distances, repeaters extend network reach by regenerating signals and resetting timing parameters, enabling interconnection of multiple segments while maintaining data integrity across the expanded topology.

Network Topology and Hub-Based Architecture

10BASE-T introduced the star topology as its primary networking arrangement, departing from earlier Ethernet designs that employed bus architectures. In star topology implementations, individual network devices connect to a central hub or switch rather than directly attaching to a shared transmission medium. This architectural shift offered substantial advantages in network management, troubleshooting, and scalability compared to predecessor implementations.

The central hub serves as the focal point for all network traffic, receiving signals from any connected port and retransmitting them to all remaining ports. This broadcasting approach ensures that every device on the network potentially receives each transmitted frame, allowing devices to filter incoming traffic based on destination addresses embedded within frames. The hub’s passive retransmission behavior means that all connected devices share the 10 Mbps bandwidth capacity, with practical throughput for individual devices declining as additional network nodes enter the network.

Alternatively, network switches provide similar physical connectivity arrangements while incorporating more sophisticated traffic management. Unlike hubs that simply retransmit all incoming traffic to all ports, switches examine destination addresses and selectively forward frames only to ports where destination devices reside. This switching behavior reduces collision occurrences and improves overall network efficiency, though 10BASE-T switches remain relatively uncommon in contemporary deployments.

Signal Transmission and Data Encoding

10BASE-T employs Manchester encoding for converting digital data into electrical signals suitable for transmission across twisted-pair cabling. This encoding scheme represents binary digits through specific voltage transitions rather than simple high and low states. A binary 1 is typically represented by a voltage transition from high to low during the middle of a bit period, while a binary 0 corresponds to a low-to-high transition. This transition-based encoding offers inherent advantages for clock recovery and timing synchronization at receiving devices, as transitions within each bit period provide timing reference information.

Link Test Pulses (LTPs) serve as specialized signaling elements that indicate active connection status. Devices transmit these pulses periodically when no data frames are being transmitted, allowing connected equipment to verify that physical links remain operational. The receiver monitors for LTPs and establishes link status based on receiving pulses within acceptable timing windows. This continuous link monitoring capability enables rapid detection of cable breaks or disconnected devices.

Signal voltage parameters specify transmission amplitudes and acceptable reception thresholds. The standard defines positive waveforms with amplitudes between 2.2 and 2.8 volts during transmission, with receiving devices accepting voltages within a broader range to accommodate signal attenuation across cable segments. These voltage specifications balance the need for robust noise margin against power consumption considerations in network interface circuitry.

Modern Comparative Analysis: 10BASE-T Within Ethernet Lineage

While 10BASE-T served admirably as foundational networking technology, contemporary environments typically employ significantly faster Ethernet standards that deliver substantially greater bandwidth capacity. 100BASE-TX, succeeding 10BASE-T in the Ethernet progression, operates at 100 Mbps while maintaining compatibility with existing twisted-pair infrastructure. This tenfold speed improvement enabled new applications and significantly improved network responsiveness for growing organizational demands.

1000BASE-T further advanced Ethernet capability by supporting gigabit-per-second transmission rates over twisted-pair cabling. This standard utilizes all four pairs within standard Ethernet cables simultaneously through sophisticated signal processing techniques, achieving thousand-fold bandwidth increases compared to 10BASE-T. Current deployments increasingly incorporate 2.5GBASE-T and 5GBASE-T variants that deliver even greater capacity for bandwidth-intensive applications including video streaming, data center operations, and cloud service access.

Modern networking equipment frequently incorporates multi-speed capability, supporting 10BASE-T, 100BASE-TX, and 1000BASE-T simultaneously through automatic speed negotiation protocols. These devices intelligently detect connected equipment capabilities and establish operating speeds accordingly, ensuring backward compatibility while permitting transition to faster technologies across network infrastructure incrementally.

Contemporary Applications and Legacy System Considerations

Despite substantial technological advancement, 10BASE-T continues serving specific niches within industrial automation, legacy manufacturing systems, and specialized control networks. Many programmable logic controllers (PLCs) and human-machine interfaces (HMIs) manufactured during the peak 10BASE-T era maintain these network interfaces for cost and simplicity reasons. Organizational investments in existing equipment sometimes justify continued operation rather than wholesale replacement, particularly when network demands remain modest.

Industrial environments benefit from 10BASE-T’s relatively simple circuitry and proven reliability in challenging physical conditions. The straightforward implementation permits integration into specialized equipment where advanced features provide minimal additional value. Process control applications frequently operate at comparatively low data rates, making 10BASE-T’s 10 Mbps capacity entirely adequate despite appearing quaint alongside modern gigabit standards.

Cable Category Compatibility and Performance Considerations

The standardization documents specify minimum cable category requirements for 10BASE-T operation, though utilization of higher-category cabling provides no performance benefits at 10BASE-T speeds. This characteristic permits flexible infrastructure planning, as organizations can deploy higher-category cabling for future-proofing while maintaining full backward compatibility with legacy 10BASE-T systems. Conversely, attempting to operate faster standards on inadequate cabling results in performance degradation and potential communication failures.

Repeater Technology and Distance Extension

Physical distance limitations inherent to twisted-pair transmission necessitate repeater technology for network expansion beyond single 100-meter segments. Repeaters function as signal regeneration devices that receive weakened signals, reconstruct them to original specifications, and retransmit them across subsequent cable segments. This signal reconditioning restores voltage levels and timing parameters, effectively resetting the accumulated degradation that occurs across cable distances.

The IEEE 802.3 standard defines repeater spacing and quantity constraints to prevent excessive timing delays that would compromise collision detection mechanisms. A minimum segment length of 2.5 meters prevents mechanical damage and permits proper termination at connector endpoints. Multiple segments can be interconnected through repeaters, though cascade limitations restrict the total number of repeater levels to prevent unacceptable timing delays. These constraints balance the competing objectives of geographic reach against reliable collision detection, which underpins the Carrier Sense Multiple Access with Collision Detection (CSMA/CD) medium access control protocol employed by 10BASE-T networks.

Single-Pair Ethernet Variant: 10BASE-T1S

Recent developments have produced 10BASE-T1S, a specialized variant designed for automotive and industrial applications requiring cost reduction and simplified installation. Unlike traditional 10BASE-T implementations utilizing four conductor pairs, 10BASE-T1S operates across a single twisted pair while maintaining 10 Mbps transmission capability. This reduction in required conductors decreases cabling costs and simplifies physical installations in space-constrained environments.

10BASE-T1S implements Physical Layer Collision Avoidance (PLCA) protocols to manage multi-drop network scenarios where multiple devices attach to a single transmission medium. This approach differs fundamentally from traditional CSMA/CD mechanisms, providing deterministic transmission characteristics valuable in automotive networks where predictable latency improves vehicle safety system reliability. Industrial automation and automotive testing applications increasingly adopt 10BASE-T1S infrastructure to balance legacy compatibility requirements with modern simplification and cost reduction objectives.

Performance and Transfer Rate Analysis

Real-world throughput achieved on 10BASE-T networks depends upon numerous factors including frame size, collision frequency, and protocol overhead. While the theoretical maximum transmission rate stands at 10 Mbps, practical sustained throughput typically ranges between 60 to 80 percent of maximum capacity. A substantial portion of transmitted data consists of protocol overhead including frame headers, error-checking sequences, and inter-frame gaps, which do not convey user data but remain essential for reliable communication.

Transferring a 10-gigabyte file across a 10BASE-T connection requires approximately two hours and thirteen minutes, illustrating the speed limitations relative to contemporary standards. The same transfer completes in under 13 seconds on 100BASE-TX networks and just over one second on gigabit Ethernet connections. These dramatic differences underscore why 10BASE-T has been superseded for modern deployments while simultaneously demonstrating that legacy systems remain functional for their intended purposes and operational contexts.

Frequently Asked Questions

What distinguishes 10BASE-T from 10BASE2 and 10BASE5?
10BASE-T utilizes twisted-pair cabling and star topology, whereas 10BASE2 and 10BASE5 employ coaxial cable in bus topology arrangements. The twisted-pair approach offers superior ease of installation, more straightforward troubleshooting, and improved network management capabilities compared to coaxial implementations.

Can 10BASE-T networks be upgraded without replacing all cabling?
Existing Category 3 and higher cabling supports faster Ethernet standards through equipment upgrades alone. Replacing network adapters and switches with newer multi-speed variants allows progressive network modernization while maintaining investment in previously installed cabling infrastructure.

Are 10BASE-T hubs still manufactured and available commercially?
Manufacturing of dedicated 10BASE-T equipment has effectively ceased, though used equipment remains available through refurbishment channels and second-hand markets. Modern network equipment rarely features 10BASE-T as a standalone option, though multi-speed devices supporting 10BASE-T alongside faster standards occasionally appear in specialized applications.

What is the typical lifespan of 10BASE-T installations?
Well-maintained 10BASE-T infrastructure remains functional for decades, as the underlying technology demonstrates remarkable durability. Many systems installed during the 1990s continue operating in industrial environments today, indicating that reliable operation persists far beyond typical technology refresh cycles.

Conclusion

10BASE-T represents a pivotal moment in networking history when Ethernet technology transitioned from laboratory research into widespread practical deployment through twisted-pair cabling and star topology architecture. The standard’s elegance in balancing simplicity with capability enabled rapid adoption across diverse organizational environments. While faster alternatives have dominated new installations for over two decades, 10BASE-T’s foundational contributions to networking standards and practices remain evident in contemporary infrastructure. Understanding this legacy standard provides valuable context for appreciating how modern Ethernet variants evolved and why specific design choices persist in current implementations. For organizations maintaining legacy systems or managing diverse networking environments encompassing multiple technology generations, 10BASE-T competency remains practically relevant and professionally valuable.
